NEW! Version 2.3
Existing V-Console customers can upgrade here
Realise the full potential of your Genos, Tyros 5 or PSR-SX900. Experience what it can really sound like.
Get a fuller richer sound more easily with 8 extra voice parts on top of the Left, Right 1, Right2 and Right 3 parts.
Simply turn parts on and off with traditional organ-style tabs. It’s like conducting.
10-inch touch screen puts everything at your fingertips.
Create your perfect sound faster than ever. No more delving through menus, with the 10 inch touch screen every control is at your fingertips.
Designed to help you enjoy playing live and more spontaneously – play more and program less.
160 ‘Showcase’ Registrations (128 for Tyros 5 & PSR-SX900) included.
Get started with V-Console
Choose between the software or hardware edition. The software edition version is ready to install on your own Windows tablet or PC. The hardware edition includes a Windows tablet PC with the software pre-installed and a cable to connect with your keyboard.
If you have an extra keyboard or pedalboard you will need extra cables to connect everything together. Have a look at the special 'cable kits'. These include all the necessary connectors between your windows tablet or PC and the keyboard(s) in your setup. There are different kits available for single, single plus pedals, dual keyboards (without pedals), and dual keyboards with pedals. Use the 'choose cable kit' button below for more details.
Software to install V-Console on your own PC or Tablet.
V-Console Software (Download Only)
V-Console Software (Boxed Version)
add a 'Cable Kit' to your order...
V-Console can be installed on any Windows PC or Tablet running Windows 10. A processor speed of 1GHz or higher is recommended. Please contact us if you would like confirmation that your system is ready for the program.

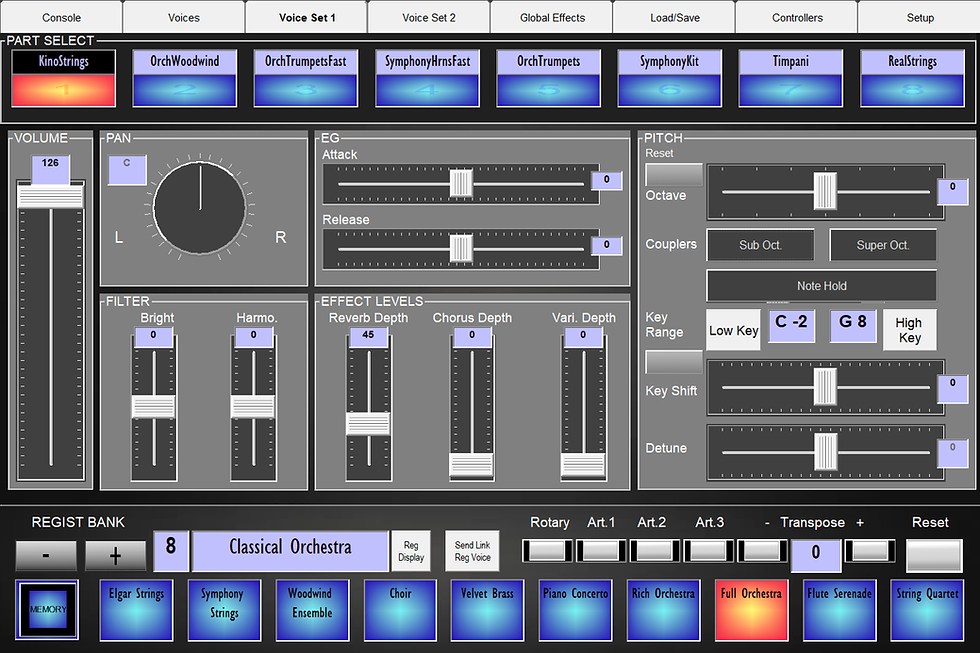

10-inch touch screen operation*
Eight extra complete voice parts
Virtual ‘Tabs’ for switching parts on and off
'Auto-bass' chord recognition
Key range setting available for every part
All original voices of main instrument available for each part
Detailed voice setting control using virtual sliders
Organ Flutes - full set of drawbars for all 8 parts. Store up to 128 user drawbar presets.
Velocity sensitivity control and switching between parts
Complete keyboard re-mapping available for every part
Full DSP editing suite including 160 user memory slots.
Store your own registrations – up to 160 in memory at once
Unlimited registration data file storage either on the tablet or USB stick
No effect on operation of main instrument
Includes 160 exclusive 'V-Console Showcase' registrations with Genos (128 for Tyros 5 and PSR-SX900)
* touchscreen tablet PC required.
Including Tablet PC, Cable and V-Console installed and ready to go.
V-Console - Full Product
(Genos, Tyros 5 & PSR-SX900)
if you want to use V-Console with an extra keyboard and/or pedalboard add a 'Cable Kit' to your order...
A dedicated tablet PC that connects to your keyboard with a single cable, V-Console is all about making more out of an already fabulous instrument. It adds a pallet of 8 extra voice parts on top of the usual Left, Right1, Right2 and Right3. Any of the existing voices on the main keyboard can be put in any of these 8 parts so you have the full complement of sounds available.
They can be switched on or off instantly using the intuitive ‘tab’ style switches on the touchscreen. Firstly, having eight extra voice parts available to play instantly means you don’t have to pre-set all you voice changes in registration memories you can be more spontaneous make your selection as you play. Secondly, it means you can create wonderfully rich layers of sound even for the left part (which only has one sound available on the main keyboard). Styles and accompaniments operate exactly the same as before.
Making your own settings couldn’t be easier. V-Console puts everything at your fingertips - all the settings are in one place. Just pick a sound and finely adjust it using the V-Console touchscreen. No more delving through layers of menus to get to the things you want to adjust.
You can set any of the different voice parts to play from different areas of keys – make full use of the whole keyboard. Why not add a brass stab in the top octave of the keyboard?
Of course, you can store your favourite settings and registrations for instant recall and there is even a selection of ‘Showcase’ settings included so you can experience what can be achieved straight out of the box.
V-Console works with Genos, Tyros 5 and PSR-SX900 If you like, just add a MIDI keyboard and/or a pedalboard for extra flexibility.
Yamaha Club October 2016 read now
The Yamaha Club Magazine - bi-montly magazine for Yamaha keyboard and digital piano enthusiasts. The Yamaha Club is an independent hobby club for Yamaha home keyboard and organ enthusiasts, working in association with Yamaha Music UK Ltd.
Organ & Keyboard Cavalcade
January 2017 read now
The ultimate hobby holidays for home organ & keyboard enthusiasts. The UK's No.1 home organ & keyboard magazine, all the latest news, views, reviews, music, with top tips & tutorials, the concert scene & much more.
V-Console Tablet PC
Dimensions: 165.00 x 255.00 x 10.20mm
Operating System: Windows 10 Home (optimized for V-Console)
Screen: 10.1” IPS TFT LCD Touch Panel, Resolution 1280 x 800
Processor: Quad Core, 64 Bit, Intel Atom x5-Z8550, up to 1.95GHz
Ram: 2GB DDR3L-1600 RAM
Internal Storage: 32GB eMMC
External Storage: 16GB SDHC UHS-I Card
Connectors: 2 x full size USB sockets, 1 x micro USB charging socket
Also included: Setup Guide, User Guide, USB Male A to Male B Cable (3m), USB Flash Drive 2GB, 5V 2A Power Adapter for tablet with 10ft charging cable.
(pre-installed for hardware edition)
Voice Parts: 8
Part On/Off: 8 x Upper, 8 x Lower, 8 x Pedal
Transpose: +/- 12
Registration Memory Buttons: 8 (name or number display)
Bank Select: 16 Banks
Registration Data File Memory: Tablet Capacity 12GB (approx. 1500 files), External USB (Variable: 1GB = 125 Files)
Voice Map: Genos, Tyros 5, PSR-SX900
Voice Map Capacity: 5120 Voices
Expansion and user voice capture
Voice Set Controls (Per Part):
Volume, Pan, Filter Brightness, Filter Harmonic Content, EG Attack, EG Release, Reverb Depth, Chorus Depth, Variation Effect Depth, Octave Shift (+/- 2), Couplers: Sub and Super Octave, Key Range Set (C-2 to G8), Key Map (re-assign any key), Key Shift (+/- 11), Detune (+/- 12.7 cents), Vibrato (Speed, Depth, Delay), Mono/Poly, Portamento Switch, Portamento Time, EQ High, EQ Low, DSP On/Off, DSP Control, DSP Dry/Wet, Touch Sense Depth, Touch Sense Offset, Minimum Velocity, Maximum Velocity, Key Mode (Polyphonic, Last Note, Highest Note, Lowest Note), Controller Switch (Expression, Sustain, Sostenuto, Pitch Bend, Modulation, Articulation 1, Articulation 2, Articulation 3, Brightness).
Seperate set of Drawbars for all 8 parts. 128 user-assignable drawbar presets.
Performance (Expression, Sustain, Sostenuto, Pitch Bend, Modulation, Articulation 1, Articulation 2, Articulation 3, Rotary On/Off, Brightness, Expression>Brightness Link), Preset Change (Up, Down), Data Entry, Style Control (Start/Stop, Fill – Self, Up, Down, Break, Ending – I, II, III), MIDI Reset
Global Touch Sense: Upper Depth, Upper Offset, Lower Depth, Lower Offset, Pedal Depth, Pedal Offset.
Load/Save controller settings (6 memories)
MIDI Input Devices x 3
MIDI Output Devices x 2
Classic Mode: On/Off
Bypass Mode: On/Off
Upper Channel Select, Lower Channel Select, Pedal Channel Select, Controller Mode: Single, Dual
Auto MIDI Setup, USB Drive Selector.
Power-up time: approx. 80 seconds
